Model : KW720
KW720 Battery tester with integrated printer 6v 12v 24v for truck car motorcycle
KONNWEI KW720 battery tester can check the overall operating status of 6V 12V 24V battery. Battery testing can analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging extent. Cranking test helps you test and analyze the starting motor, and the charging test is to check the charging system status to avoid damaging the battery.
KONNWEI KW720 battery tester built in printer, equipped with standard thermal printer paper,can print the last test result of this battery tester directly. After the test is completed, you can easily print the test results, then paste it on the worksheet.Support the majority of vehicle battery standards, such as CCA, BCI,CA,MCA,JIS,DIN,IEC/EN/SAE,Suitable for all 1V -30V lead-acid batteries ranging from 100 to 2000 CCA, including regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries for the truck, boat, Car, motorcycles, lawn mowers and other gardening machines,etc.

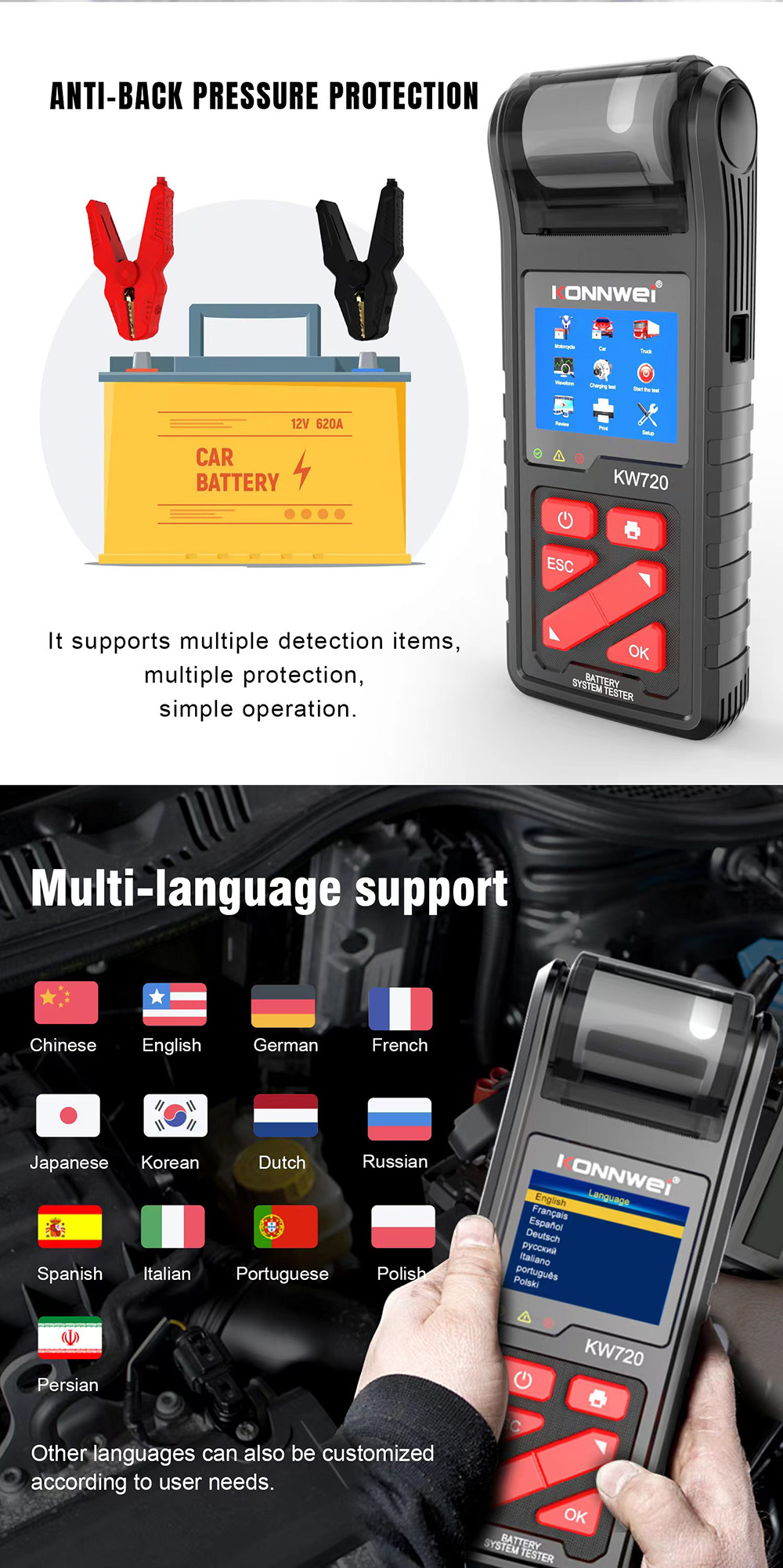

This car battery load tester offers vehicle electrical safety through exceptionally polarity reverses connection protection. Fully Insulated Alligator Clips are built with user safety in mind through spark-free operation and reverse polarity protection.

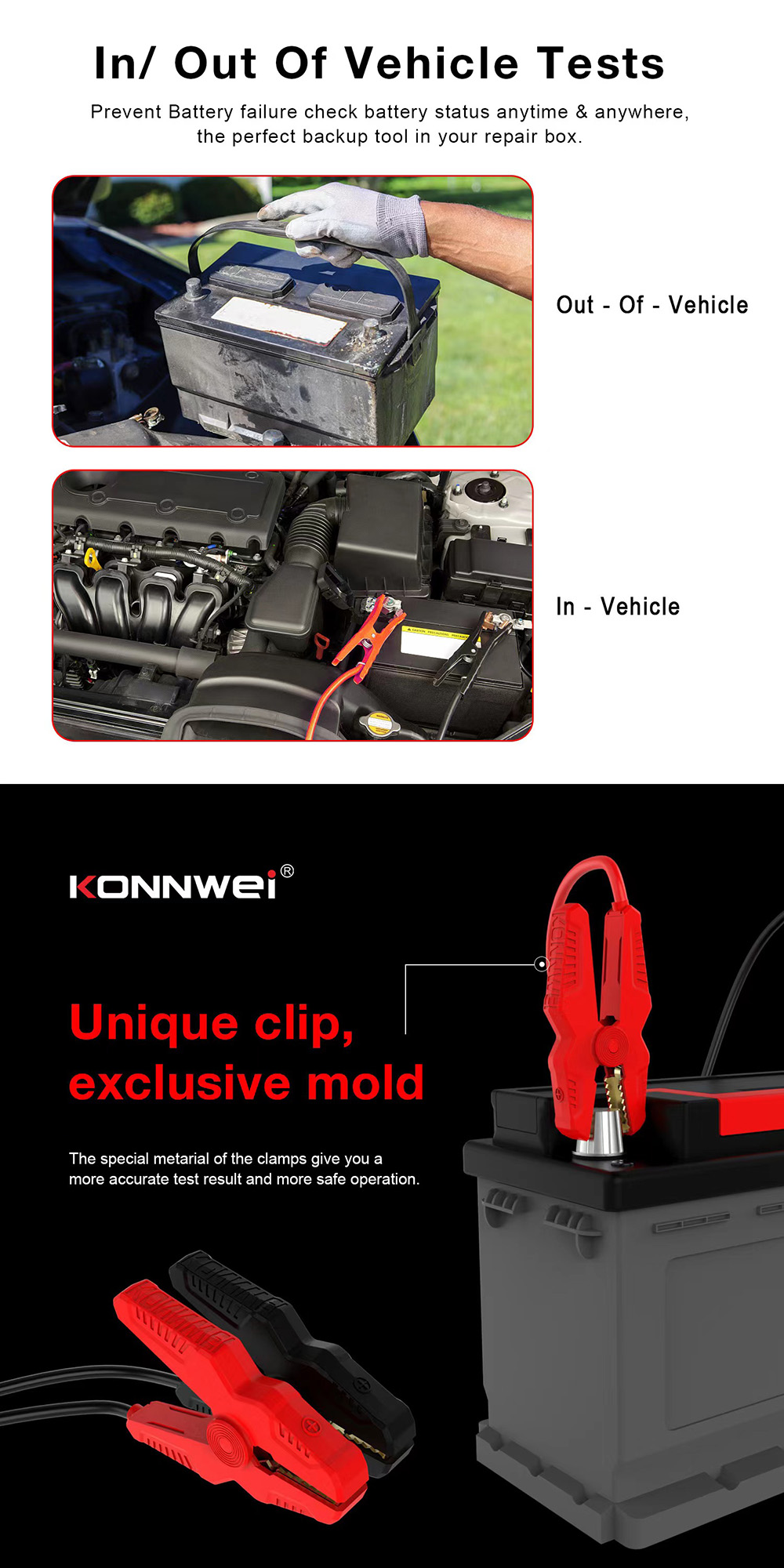

This car battery tester is easy-to-use and can get accurate results in seconds. The battery alternator tester can directly detect bad cell battery and test the battery that is losing power (as low as 1.0V), no need to full charge before testing. No matter the batteries in the vehicles or out of the vehicles, the KONNWEI KW720 battery tester will finish its testing job excellently.
Item name | Car & motorcycle & Truck battery tester with integrated printer |
| Languages | Chinese, English,German, French,Japanese,Korean,Dutch, Russian, Spanish,Italian,Portuguese,Polish,Persian |
Application | KW720 konnwei can test all 1V -30V lead-acid batteries ranging from 100 to 2000 CCA, including |
Function 1 | System voltage 12 Volts and Voltage test in waveform |
Function 2 | Test Result Good, Recharge or Replace |
Function 3 | Capacity Cold Cranking Amps (CCA), DIN, EN and IEC information relative to battery rating. |
Function 4 | internal resistance value (mΩ) and Life in percentage (%) |
Function 5 | Cranking system and Charging system |
Function 6 | Record and re-play battery data, Life-time free update service |

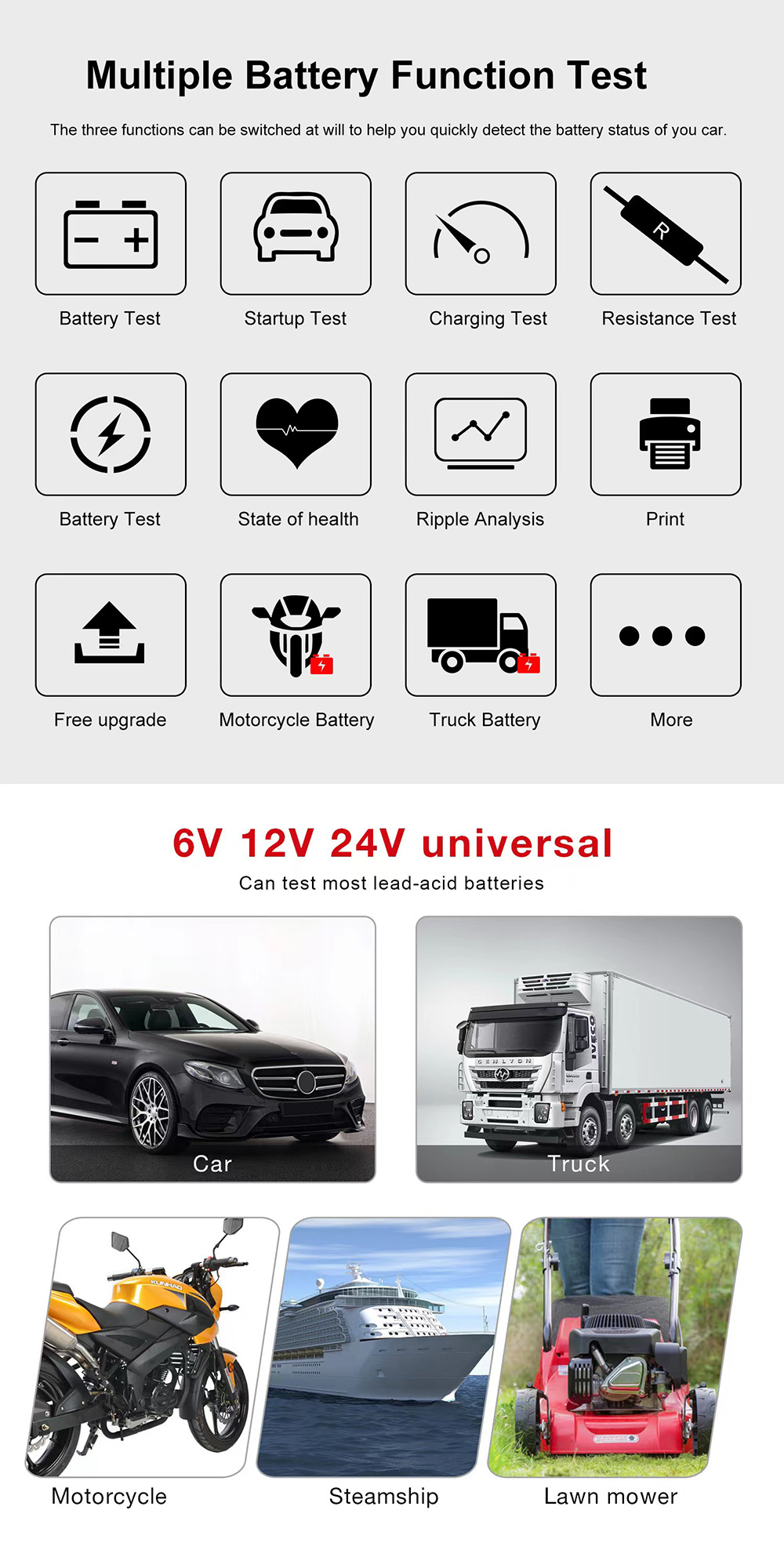

Function 7 | Battery test, cranking test, charging test and other additional functions. |
Function 8 | The major battery standards CA,CCA,BCL,MCA,JIS,SAE,EN,GB,DIN and IEC are supported |
Display | 3.2 inches Color TFT LCD Screen with waveform and ripple display |
System Voltage | 6-36Volts |
Power Requirements | No internal batteries required. |
Operating Temperature | 0℃-50℃ |
Storage Temperature | -20℃-70℃ |
OEM | (1) Print logo on tool , |

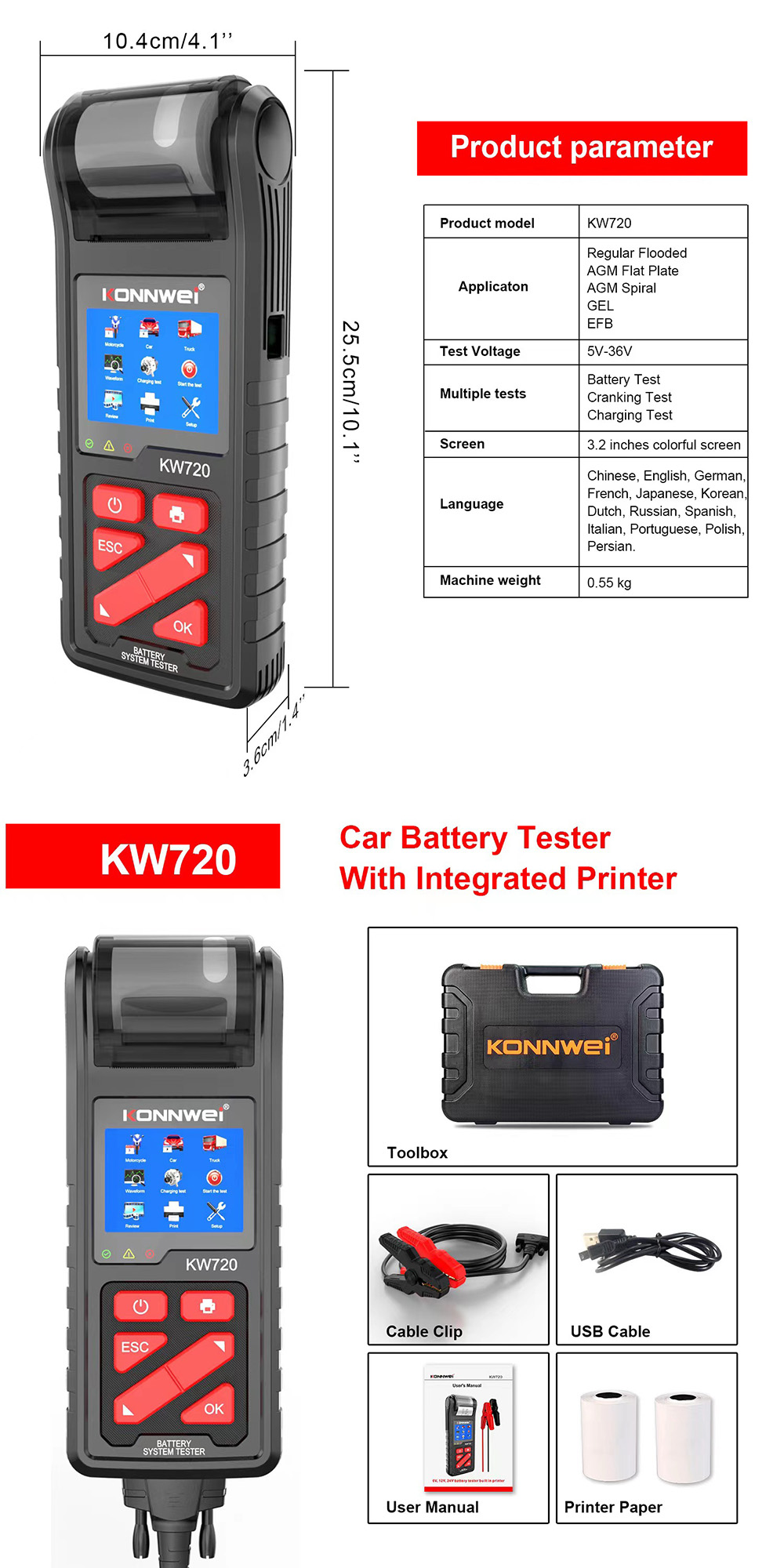

Package includes | 1*KONNWEI KW720 car battery tester built in printer 1*Mini USB cable 1*User’s Manual 1* tool box 2* print paper |

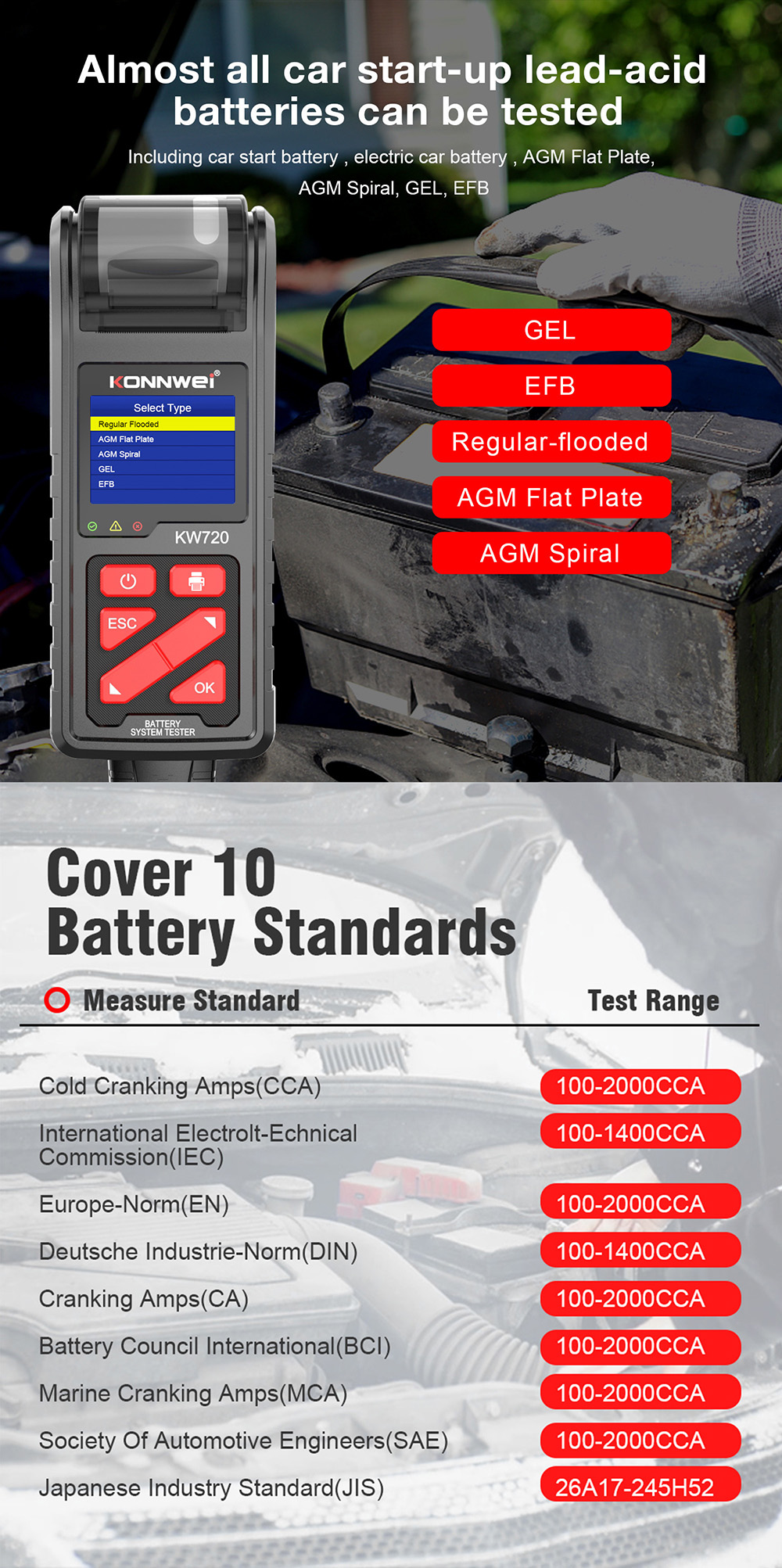

Measure Standard | 1.CCA:100-2000 2.BCI:100-2000 3.CA:100-2000 4.MCA:100-2000 5.JIS:26A17-24SH52 6.DIN:100-1400 7.IEC:100-1400 8.EN:100-2000 9.SAE:100-2000 |
Battery type | all automotive cranking lead acid battery, including ordinary lead acid battery, AGM flat plate battery 6V 12V 24V |
Style | Directly detect bad cell battery. |
Update | accept update and print |
Update System | win7 win8 win10 xp |
MOQ | 1 Units |
Feature | KONNWEI KW720 Battery tester 6V 12V 24V Built In Printer with 2 roll printer paper |
KONNWEI KW720 Battery Analyzer with integrated printer
KONNWEI KW720 car battery testeris able to effectively analyze andread important car data such as voltage, internal resistance, cold cranking amp and AH capacity, battery health and charge status. It provides accurate results, calculates thecold cranking capability of the battery and the aging extent, allowingfor a quicker, more precise car repairing.

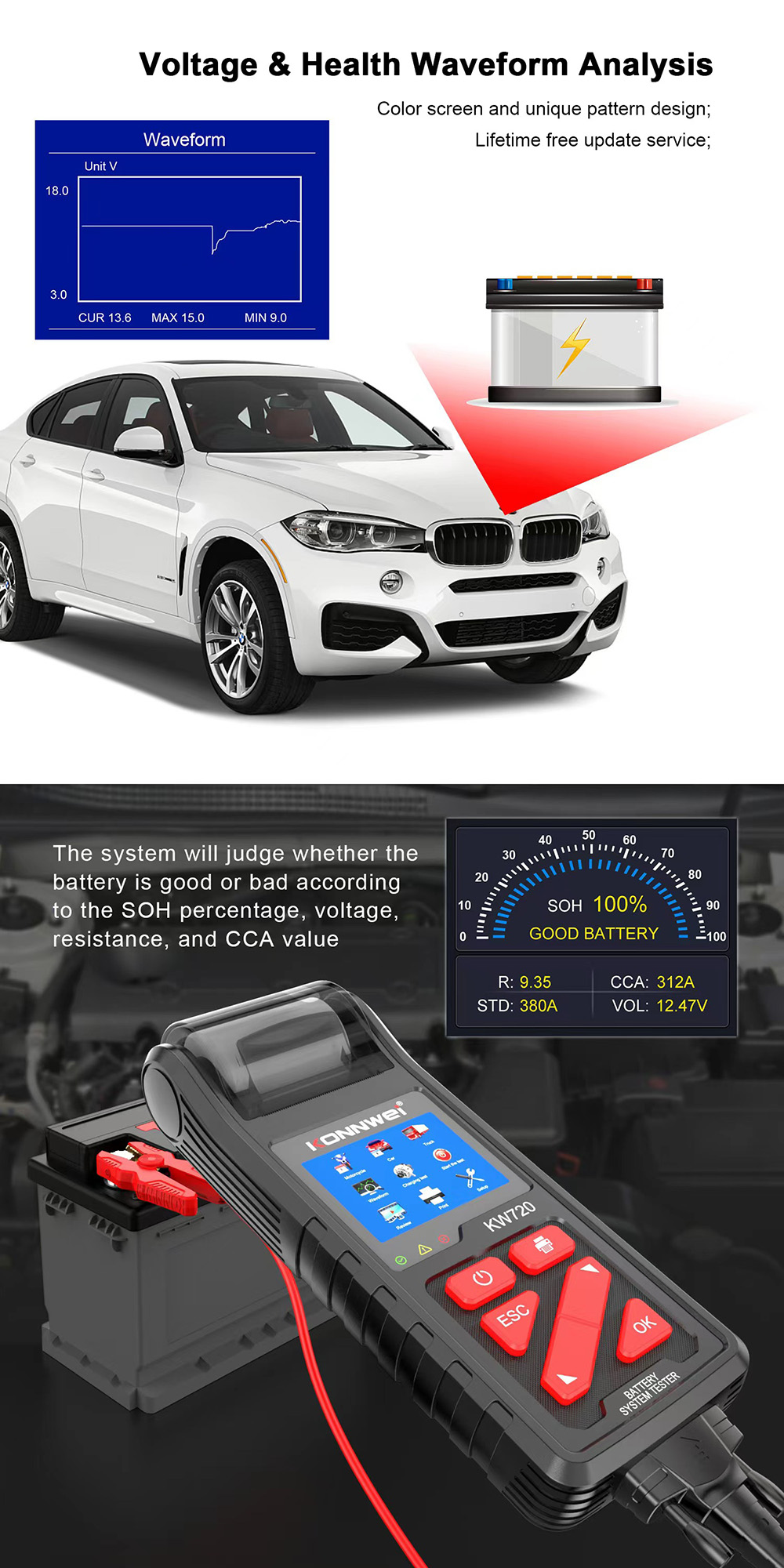

Test results display in both text and graphing, but the real-time battery voltage showing in a waveform. With an intelligent 3.2 LCD screen and STM32 main chip, reading access is practical and rapid! Lifetime update service is supported by KONNWEI BTlink app.
KW720 battery tester with printer Features:
1.System voltage: 6 volts- 12 Volts - 24 volts
2.Test Result: Good, Recharge or Replace
3.Capacity - Cold Cranking Amps
(CCA), DIN, EN and IEC information relative to battery rating.
4.Internal resistance value (mΩ)
5.Life in percentage (%)
6.Cranking system
7.Charging system
8.Voltage test in waveform
9.Record and re-play battery data, Life-time free update service
10.Battery test, cranking test, charging test and other additional functions.
Package includes：
1*KONNWEI KW720 car battery tester built in printer
1*Mini USB cable
1*User’s Manual
1* tool box
2* print paper
